UCF318

  • For 90mm shafts
UCF318
Gross price
Excl. of VAT€ 430,32

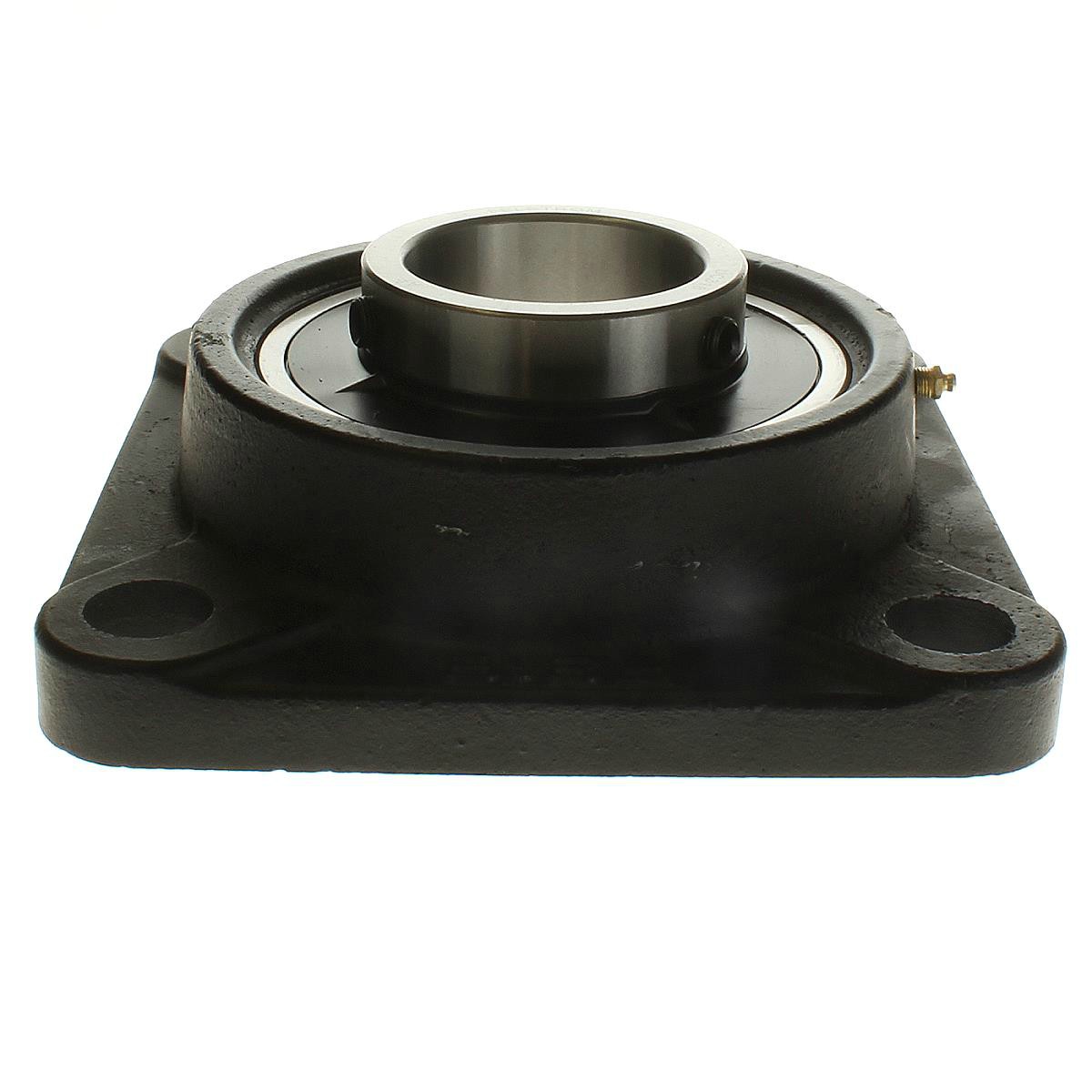

Cast iron UCF housing unit for 90 mm shafts

Technical information

Felstrom’s UCF318 is a robust cast iron housing unit for 90mm shafts (d1). The housing unit consists of bearing housing F318 and insert bearing . Due to their great application flexibility, Felstrom cast iron housing units are our most popular variant. These cast iron housing units are often used in open applications providing space for lubrication as well as fitting and removal.

Felstrom housing units are characterised by their consistent quality and neat finish. All our housing units are available in cast iron, stainless steel (indicated by SS) and plastic (indicated by PSS). Our affordable housing units are individually packaged and available from our resellers.

Product details UCF318
  • d (mm)
    90
  • L (mm)
    280
  • J (mm)
    216
  • A1 (mm)
    30
  • A (mm)
    76
  • N (mm)
    35
  • T (mm)
    100
  • Bi (mm)
    96
  • S1 (mm)
    40
  • Dynamic C
    143000
  • Static Co
    108000
  • Bearing
    UC318
  • Housing
    F318
  • G - Bolt size
    M30
  • m (kg)
    18.8
