UCF307

  • For 35mm shafts
UCF307
Gross price
Excl. of VAT€ 65,75

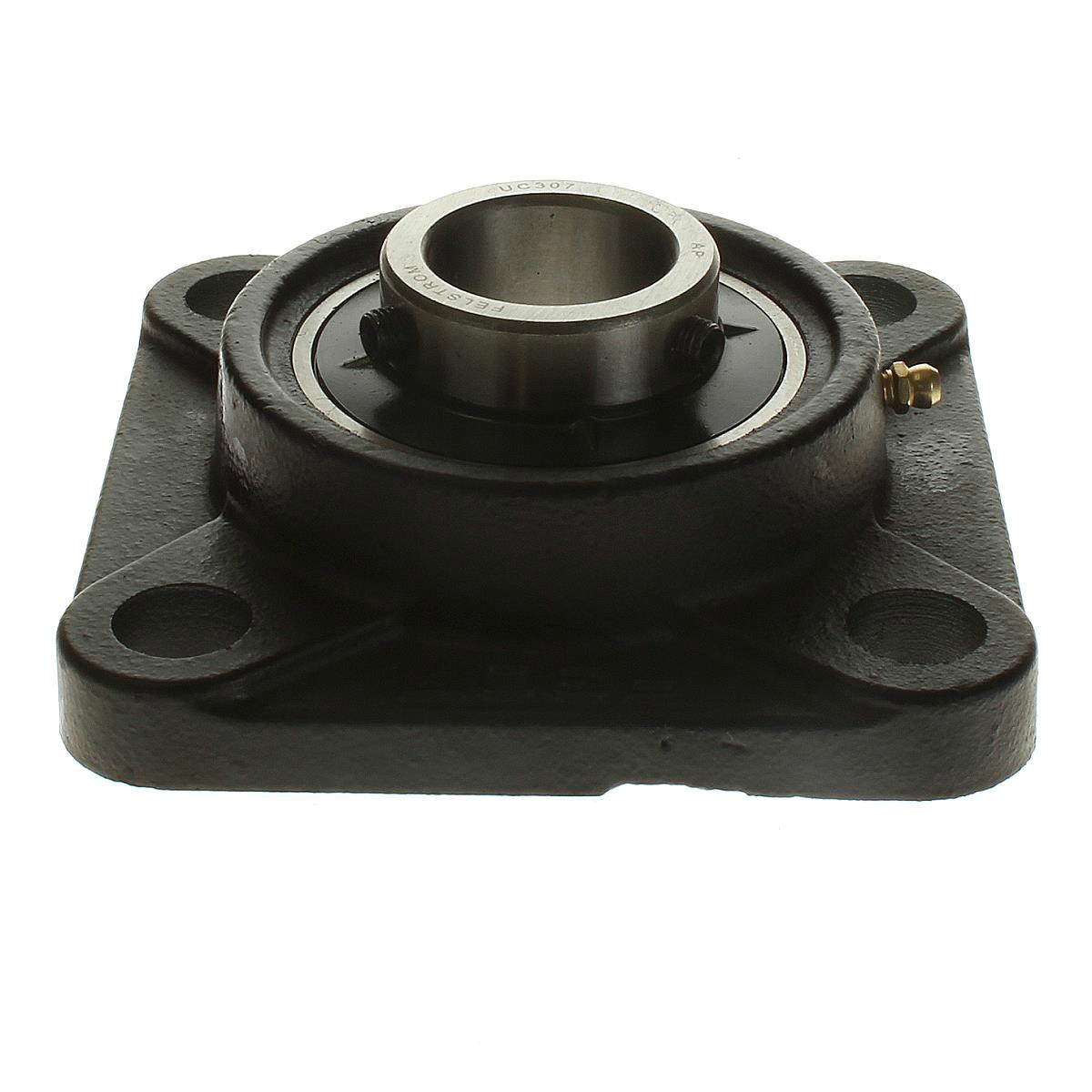

Cast iron UCF housing unit for 35 mm shafts

Technical information

Felstrom’s UCF307 is a robust cast iron housing unit for 35mm shafts (d1). The housing unit consists of bearing housing F307 and insert bearing UC307. Due to their great application flexibility, Felstrom cast iron housing units are our most popular variant. These cast iron housing units are often used in open applications providing space for lubrication as well as fitting and removal.

Felstrom housing units are characterised by their consistent quality and neat finish. All our housing units are available in cast iron, stainless steel (indicated by SS) and plastic (indicated by PSS). Our affordable housing units are individually packaged and available from our resellers.

Product details UCF307
  • d (mm)
    35
  • L (mm)
    135
  • J (mm)
    100
  • A1 (mm)
    20
  • A (mm)
    36
  • N (mm)
    19
  • T (mm)
    49
  • Bi (mm)
    48
  • S1 (mm)
    9
  • Dynamic C
    33500
  • Static Co
    19200
  • Bearing
    UC307
  • Housing
    F307
  • G - Bolt size
    M16
  • m (kg)
    2.2
