UCF214

  • For 70mm shafts
UCF214
Gross price
Excl. of VAT€ 108,00

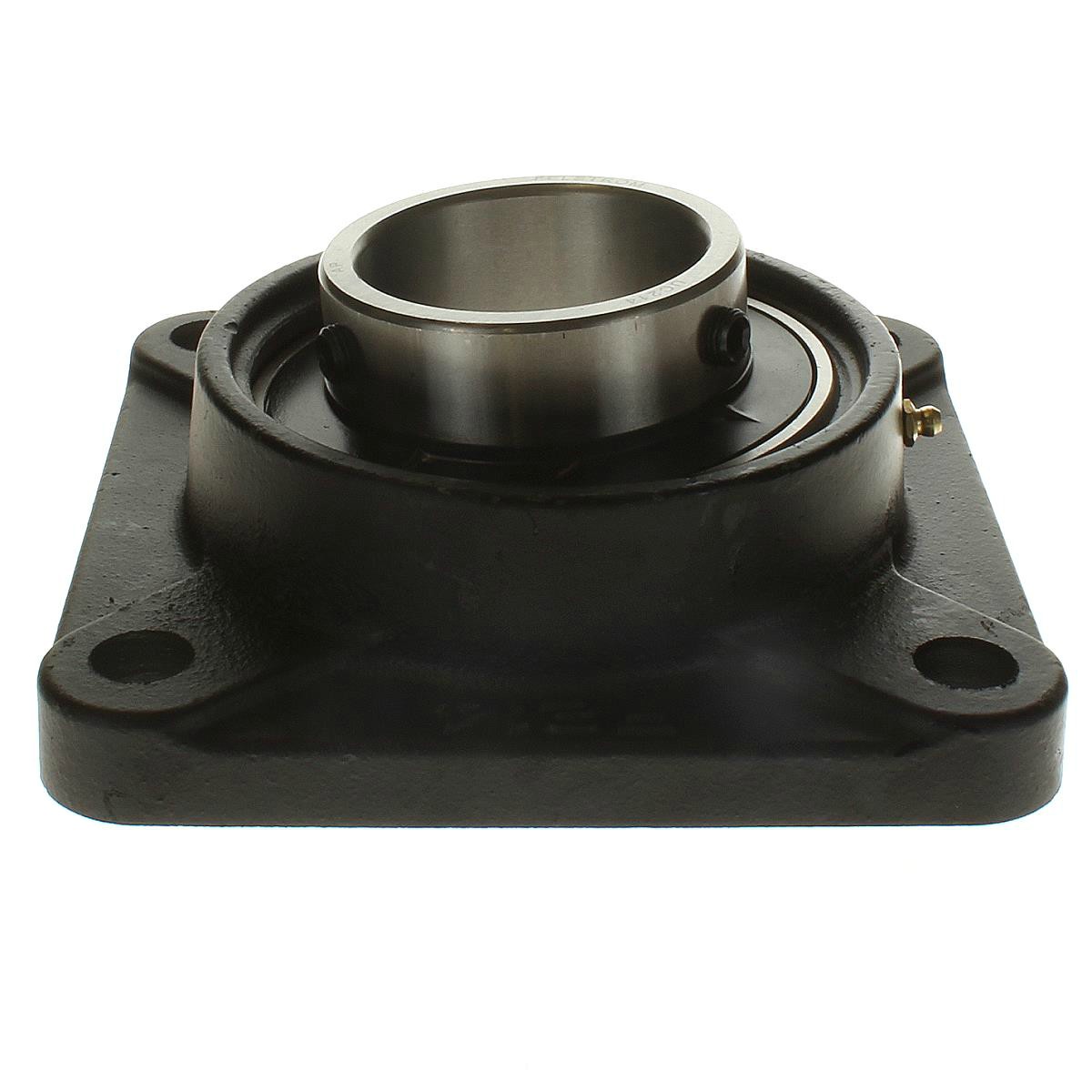

Cast iron UCF housing unit for 70 mm shafts

Technical information

Felstrom’s UCF214 is a robust cast iron housing unit for 70mm shafts (d1). The housing unit consists of bearing housing F214 and insert bearing UC214. Due to their great application flexibility, Felstrom cast iron housing units are our most popular variant. These cast iron housing units are often used in open applications providing space for lubrication as well as fitting and removal.

Felstrom housing units are characterised by their consistent quality and neat finish. All our housing units are available in cast iron, stainless steel (indicated by SS) and plastic (indicated by PSS). Our affordable housing units are individually packaged and available from our resellers.

Product details UCF214
  • d (mm)
    70
  • L (mm)
    193
  • J (mm)
    152
  • A1 (mm)
    24
  • A (mm)
    54
  • N (mm)
    19
  • T (mm)
    75.4
  • Bi (mm)
    74.6
  • S1 (mm)
    30.2
  • Dynamic C
    59090
  • Static Co
    41895
  • Bearing
    UC214
  • Housing
    F214
  • G - Bolt size
    M16
  • m (kg)
    6
