HE 308

  • d1 = 11/4 inch
HE 308
Gross price
Excl. of VAT€ 43,27

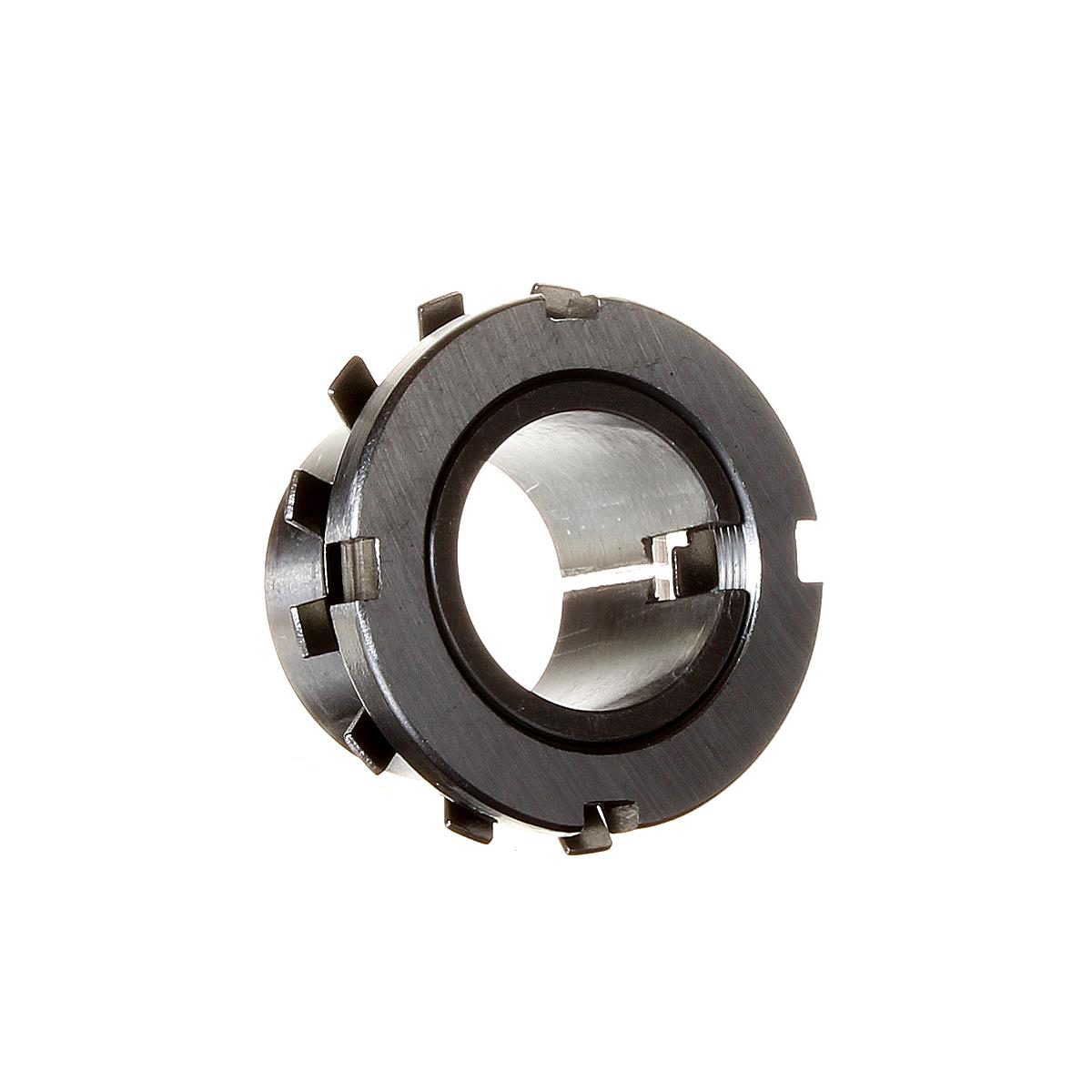

Withdrawal sleeve for 11/4 inch shaft

Technical information

Felstrom’s HE 308 adapter sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the adapter sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s HE 308 adapter sleeve can be used in combination with bearings of any brand. The HE 308 adapter sleeve is used for fitting and removing 11/4 inch shafts (d1) and is suitable for 2208K, 1308K, 22208K, 21308CK bearings.

Felstrom adapter sleeves are always supplied with associated lock nut and locking device. We supply all regular adapter and withdrawal sleeves in both metric (H series) and imperial sizes (HE , HA and HS series). Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details HE 308
  • d (mm)
    40
  • d1 (mm)
    31.75
  • d1 (inch)
    11/4
  • d3 (mm)
    58
  • B4 (mm)
    10
  • Adapter sleeve with nut and locking device
    HE 308
  • Lock nut
    KM 8
  • Locking device
    MB 8
  • Bearing(s)
    2208K, 1308K, 22208K, 21308K
  • G - Bolt size
    M 40x1.5
  • m (kg)
    0.22
