H 2330

  • d1 = 135 mm
H 2330
Gross price
Excl. of VAT€ 404,50

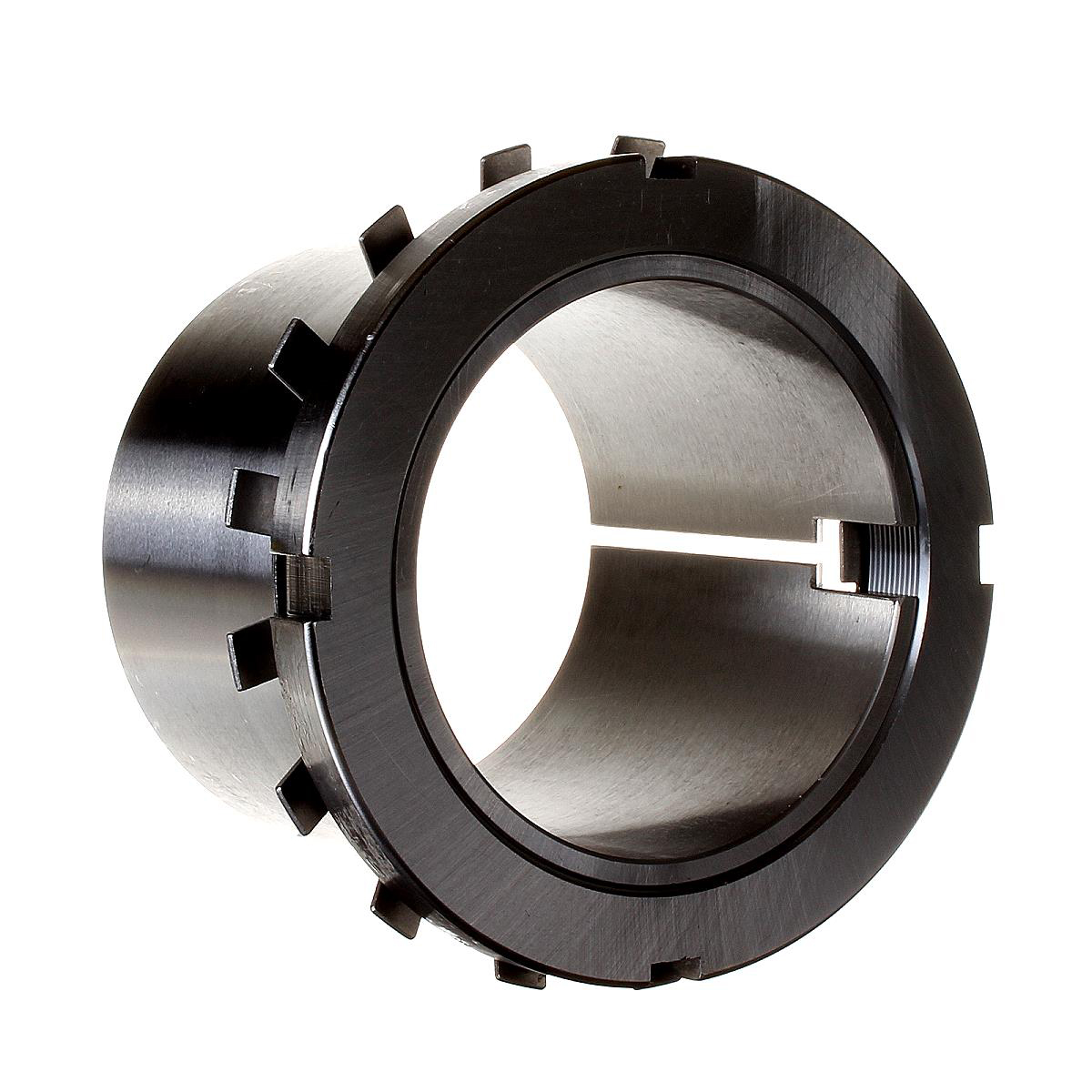

Adapter sleeve for 135 mm shaft

Technical information

Felstrom’s H 2330 adapter sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the adapter sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s H 2330 adapter sleeve can be used in combination with bearings of any brand. The H 2330 adapter sleeve is used for fitting and removing 135 mm shafts (d1) and is suitable for 2330K, 22330CK bearings.

Felstrom adapter sleeves are always supplied with associated lock nut and locking device. We supply all regular adapter and withdrawal sleeves in both metric (H series) and imperial sizes (HE , HA and HS series). Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details H 2330
  • d1 (mm)
    135
  • d3 (mm)
    195
  • B1 (mm)
    139
  • B2 (mm)
    26
  • Lock nut
    KM 30
  • Locking device
    MB 30
  • Appropriate hydraulic nut
    HMV 30 E
  • Bearing(s)
    2330K, 22330K
  • G - Bolt size
    M 150x2
  • m (kg)
    6.4
