H 2322

  • d1 = 100 mm
H 2322
Gross price
Excl. of VAT€ 142,50

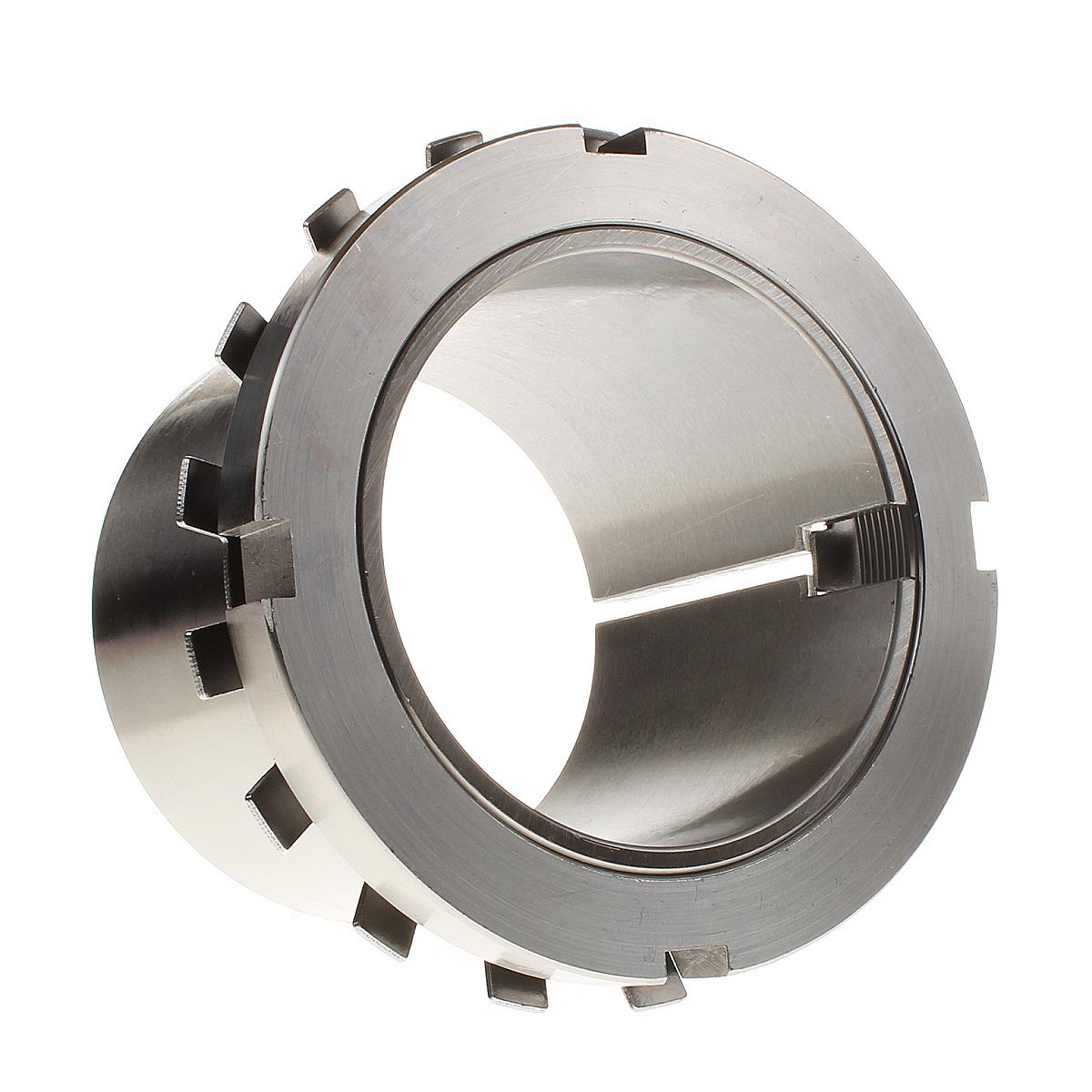

Adapter sleeve for 100 mm shaft

Technical information

Felstrom’s H 2322 adapter sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the adapter sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s H 2322 adapter sleeve can be used in combination with bearings of any brand. The H 2322 adapter sleeve is used for fitting and removing 100 mm shafts (d1) and is suitable for 2322K, 22322CK bearings.

Felstrom adapter sleeves are always supplied with associated lock nut and locking device. We supply all regular adapter and withdrawal sleeves in both metric (H series) and imperial sizes (HE , HA and HS series). Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details H 2322
  • d1 (mm)
    100
  • d3 (mm)
    145
  • B1 (mm)
    105
  • B2 (mm)
    21
  • Lock nut
    KM 22
  • Locking device
    MB 22
  • Appropriate hydraulic nut
    HMV 22 E
  • Bearing(s)
    2322K, 22322K
  • G - Bolt size
    M 110x2
  • m (kg)
    2.75
