AH3228

  • d1 = 135 mm
AH3228
Gross price
Excl. of VAT€ 317,29

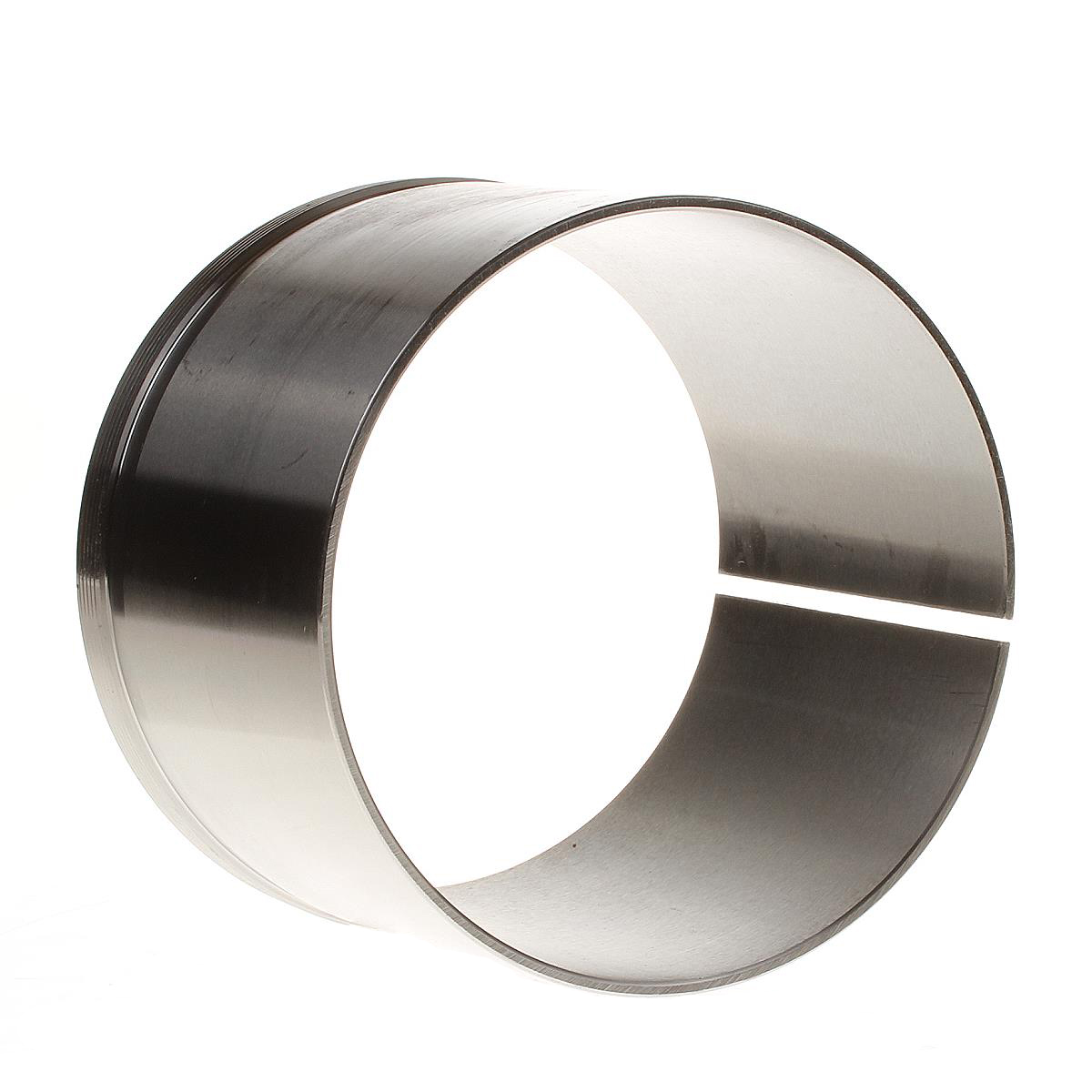

Withdrawal sleeve for 135mm shaft

Technical information

Felstrom’s AH3228 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH3228 withdrawal sleeve can be used in combination with bearings of any brand. The AH3228 withdrawal sleeve is used for fitting onto or removing from 135mm shafts (d1) and suitable for 23228K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH3228
  • d (mm)
    140
  • d1 (mm)
    135
  • B1 (mm)
    104
  • B2 (mm)
    109
  • G1 (mm)
    15
  • Lock nut
    KM 26
  • Locking washer
    MB 26
  • Withdrawal sleeve
    AHX 3228 G
  • Lock nut for disassembly
    KM30
  • Hydraulic lock nut
    HMV 30 E
  • Bearing(s)
    23228K
  • G - Bolt size
    M 150X2
  • m (kg)
    1.9
