AH317

  • d1 = 80 mm
AH317
Gross price
Excl. of VAT€ 96,71

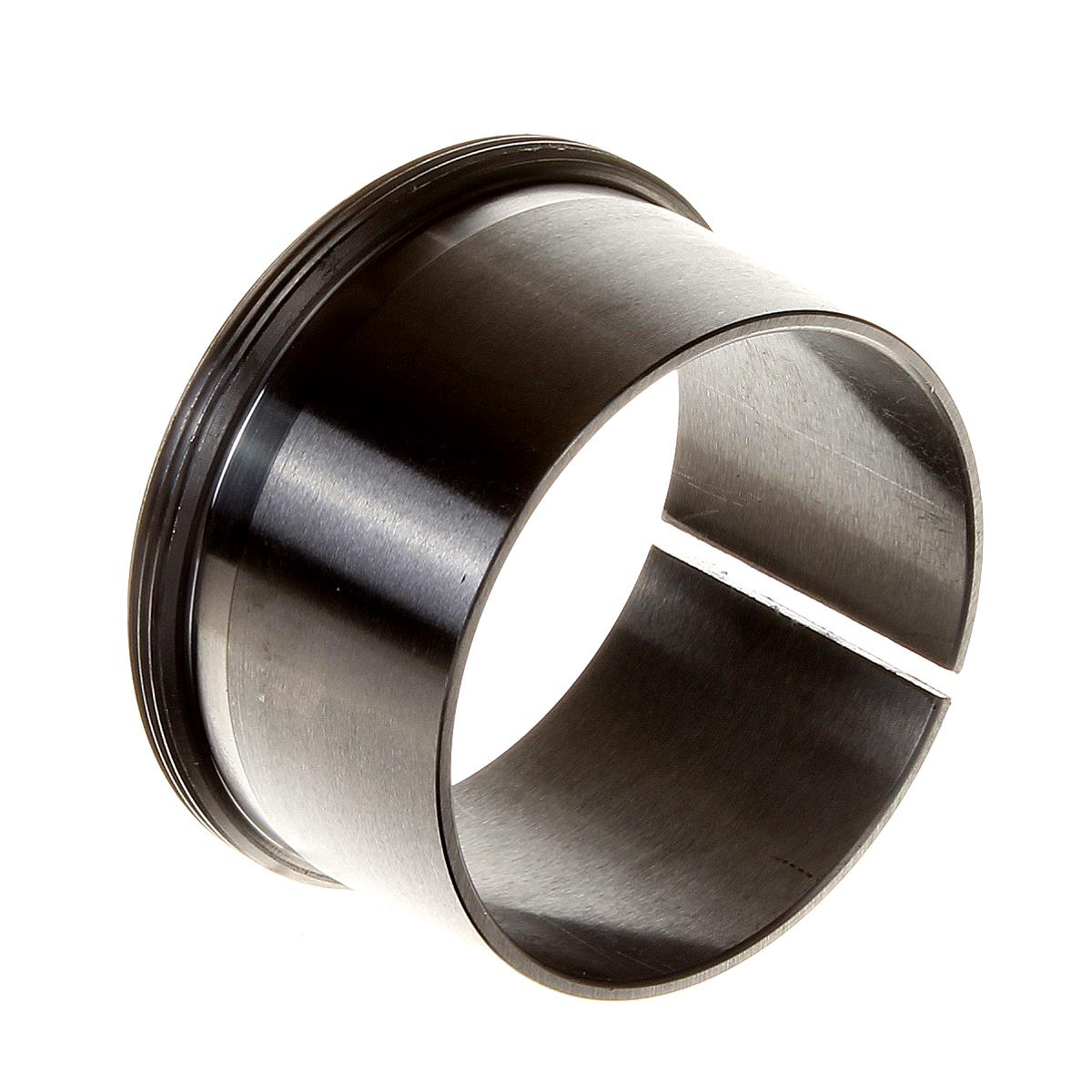

Withdrawal sleeve for 80mm shaft

Technical information

Felstrom’s AH317 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH317 withdrawal sleeve can be used in combination with bearings of any brand. The AH317 withdrawal sleeve is used for fitting onto or removing from 80mm shafts (d1) and suitable for 2217K, 1317K, 22217K, 21317K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH317
  • d (mm)
    85
  • d1 (mm)
    80
  • B1 (mm)
    52
  • B2 (mm)
    56
  • G1 (mm)
    9
  • Lock nut
    KM 16
  • Locking washer
    MB 16
  • Withdrawal sleeve
    AHX 317
  • Lock nut for disassembly
    KM19
  • Hydraulic lock nut
    HMV 19 E
  • Bearing(s)
    2217K, 1317K, 22217K, 21317K
  • G - Bolt size
    M 95 x 2
  • m (kg)
    0.43
