• d1 = 190 mm
Gross price
Excl. of VAT€ 574,00

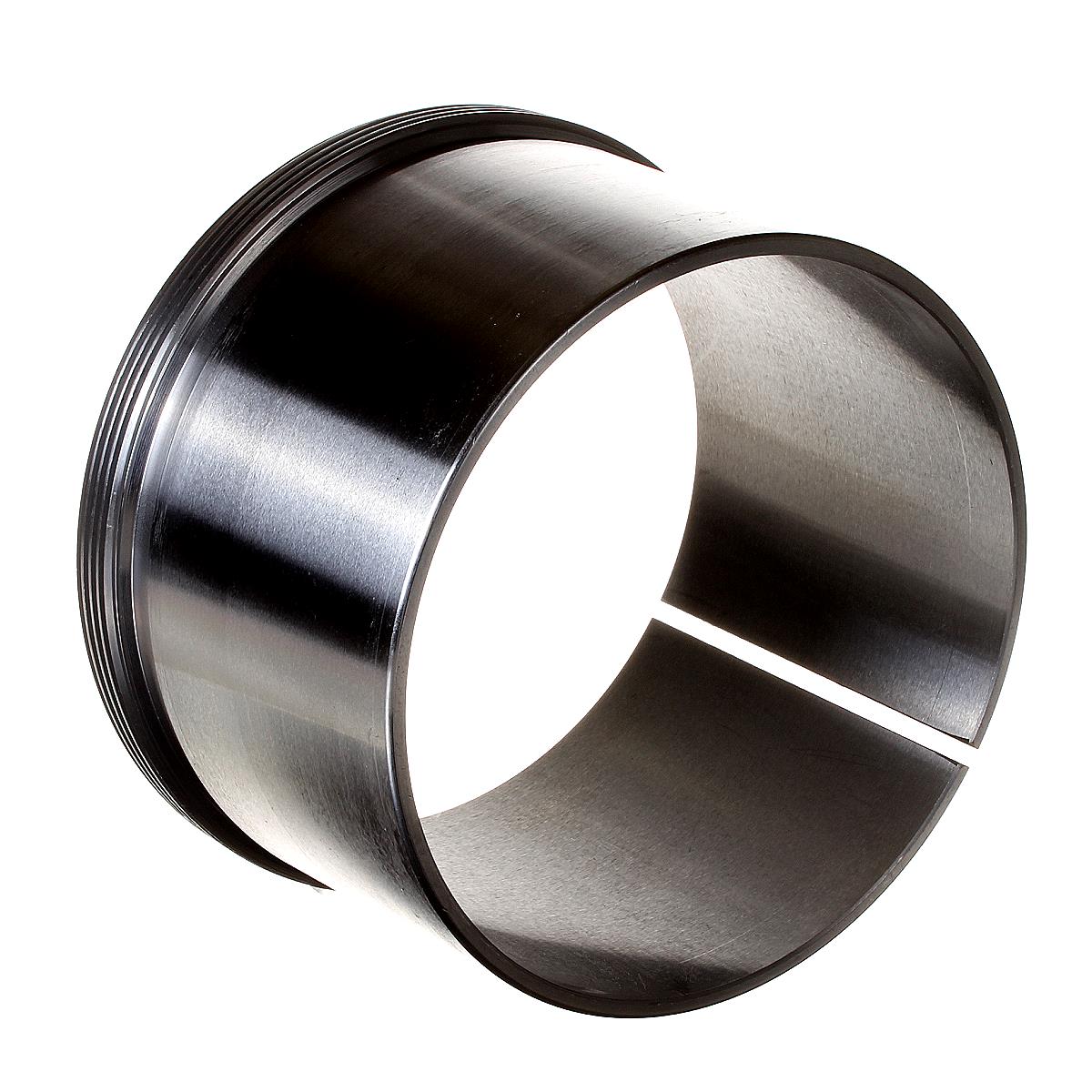

Withdrawal sleeve for 190mm shaft

Technical information

Felstrom’s AH3140 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH3140 withdrawal sleeve can be used in combination with bearings of any brand. The AH3140 withdrawal sleeve is used for fitting onto or removing from 190mm shafts (d1) and suitable for 23140K, 22240K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH3140
  • d (mm)
  • d1 (mm)
  • B1 (mm)
  • B2 (mm)
  • G1 (mm)
  • Lock nut
    KM 38
  • Locking washer
    MB 38
  • Withdrawal sleeve
    AH 3140
  • Lock nut for disassembly
  • Hydraulic lock nut
    HMV 44 E
  • Bearing(s)
    23140K, 22240K
  • G - Bolt size
    Tr 210 x 4
  • m (kg)
