AH3138

  • d1 = 180 mm
AH3138
Gross price
Excl. of VAT€ 539,00

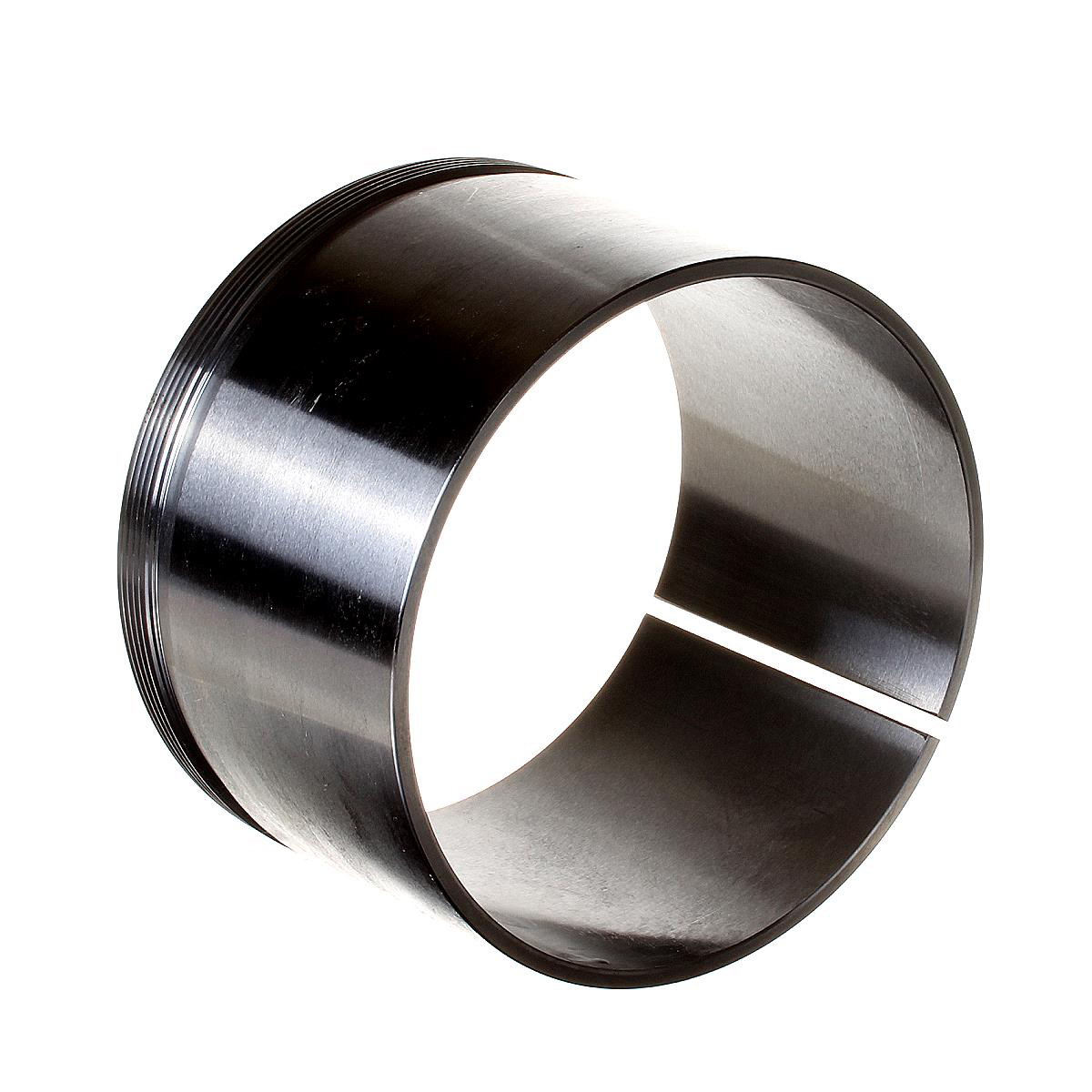

Withdrawal sleeve for 180mm shaft

Technical information

Felstrom’s AH3138 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH3138 withdrawal sleeve can be used in combination with bearings of any brand. The AH3138 withdrawal sleeve is used for fitting onto or removing from 180mm shafts (d1) and suitable for 23138K, 22238K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH3138
  • d (mm)
    190
  • d1 (mm)
    180
  • B1 (mm)
    125
  • B2 (mm)
    131
  • G1 (mm)
    20
  • Lock nut
    KM 36
  • Locking washer
    MB 36
  • Withdrawal sleeve
    AH 3138 G
  • Lock nut for disassembly
    KM40
  • Hydraulic lock nut
    HMV 40 E
  • Bearing(s)
    23138K, 22238K
  • G - Bolt size
    M 200X3
  • m (kg)
    4.9
