• d1 = 95 mm
Gross price
Excl. of VAT€ 159,37

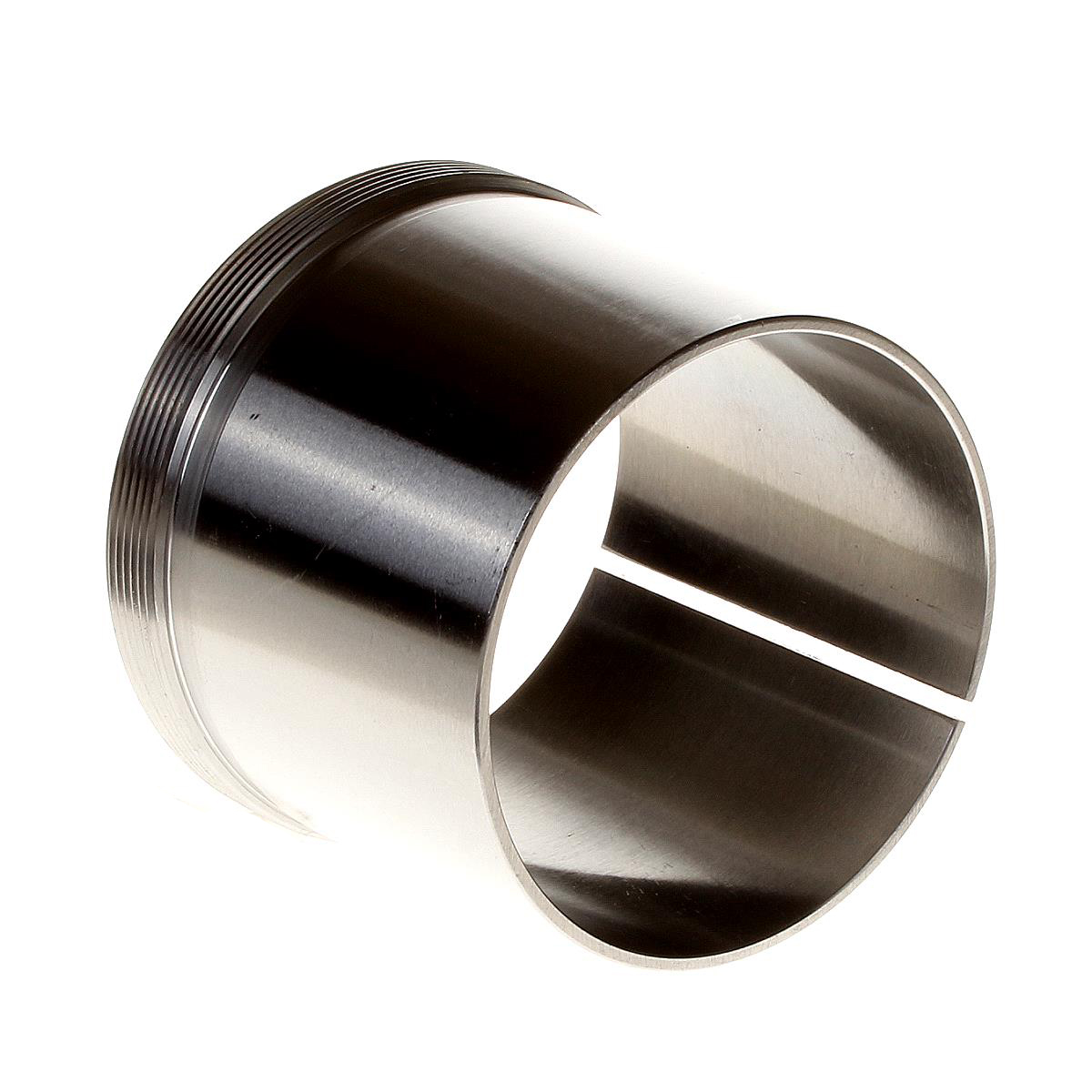

Withdrawal sleeve for 95mm shaft

Technical information

Felstrom’s AH2320 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH2320 withdrawal sleeve can be used in combination with bearings of any brand. The AH2320 withdrawal sleeve is used for fitting onto or removing from 95mm shafts (d1) and suitable for 2320K, 22320K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH2320
  • d (mm)
  • d1 (mm)
  • B1 (mm)
  • B2 (mm)
  • G1 (mm)
  • Lock nut
    KM 19
  • Locking washer
    MB 19
  • Withdrawal sleeve
    AHX 2320
  • Lock nut for disassembly
  • Hydraulic lock nut
    HMV 22 E
  • Bearing(s)
    2320K, 22320K
  • G - Bolt size
    M 110 x 2
  • m (kg)
