• d1 = 85 mm
Gross price
Excl. of VAT€ 134,32

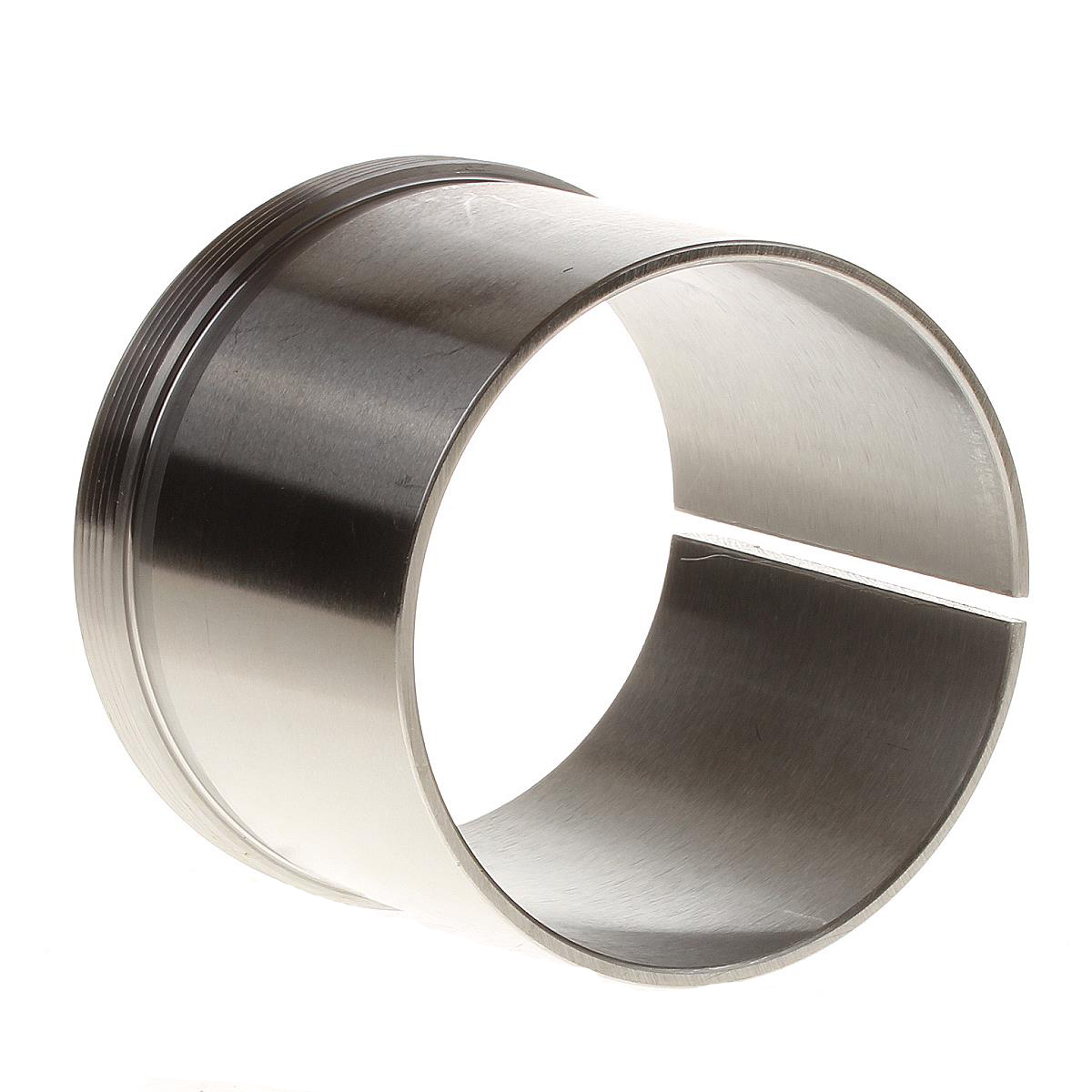

Withdrawal sleeve for 85mm shaft

Technical information

Felstrom’s AH2318 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH2318 withdrawal sleeve can be used in combination with bearings of any brand. The AH2318 withdrawal sleeve is used for fitting onto or removing from 85mm shafts (d1) and suitable for 2318K, 22318K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH2318
  • d (mm)
  • d1 (mm)
  • B1 (mm)
  • B2 (mm)
  • G1 (mm)
  • Lock nut
    KM 17
  • Locking washer
    MB 17
  • Withdrawal sleeve
    AHX 2318
  • Lock nut for disassembly
  • Hydraulic lock nut
    HMV 20 E
  • Bearing(s)
    2318K, 22318K
  • G - Bolt size
    M 100 x 2
  • m (kg)
