• d1 = 40 mm
Gross price
Excl. of VAT€ 55,60

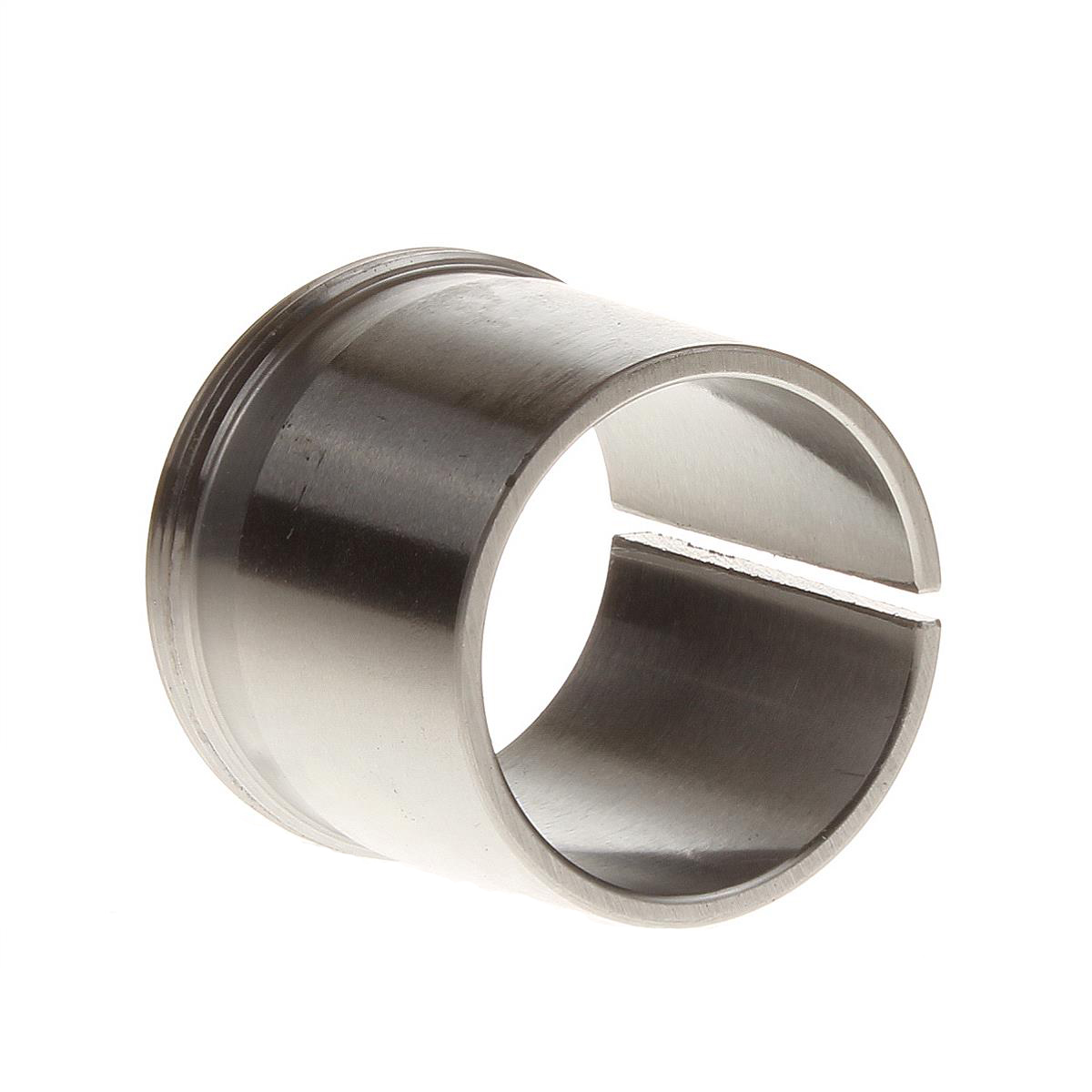

Withdrawal sleeve for 40mm shaft

Technical information

Felstrom’s AH2309 withdrawal sleeve ensures that conical bearings can be easily fitted onto or removed from a cylindrical shaft. We recommend that the withdrawal sleeve is replaced each time a bearing is fitted or removed. This prevents damage or contamination during fitting or removal and extends the lifespan of the bearing.

Felstrom’s AH2309 withdrawal sleeve can be used in combination with bearings of any brand. The AH2309 withdrawal sleeve is used for fitting onto or removing from 40mm shafts (d1) and suitable for 2309K, 22309K bearings.

Felstrom supplies all regular adapter and withdrawal sleeves in both metric and imperial sizes. Felstrom’s adapter and withdrawal sleeves are characterised by a neat finish for the thread and running surface. All Felstrom products are packaged individually. Our affordable adapter and withdrawal sleeves are available from our resellers.

Product details AH2309
  • d (mm)
  • d1 (mm)
  • B1 (mm)
  • B2 (mm)
  • G1 (mm)
  • Lock nut
    KM 8
  • Locking washer
    MB 8
  • Withdrawal sleeve
    AH 2309
  • Lock nut for disassembly
  • Hydraulic lock nut
    HMV 10 E
  • Bearing(s)
    2309K, 22309K
  • G - Bolt size
    M 50 x 1.5
  • m (kg)
